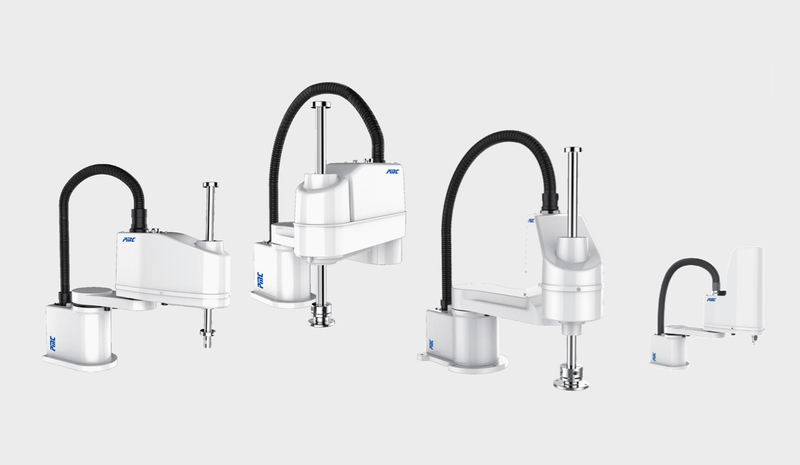

product features:
◆ Self-developed, innovative, modular processing, assembly detection and electron control system, product process control strict control, stable and reliable.
◆ PMC unique design, covering various angles as ranges, high-speed, high-precision assembly and material handling, and many machining work.
Light reaction is used in automobiles, medical, electronic equipment / semiconductors, industrial, consumer electronics, food, laboratory automation, solar energy, packaging and other industries.
Comprehensive parameters:
model | PMC-400 | PMC-600/750 | PMC800 | PMC-500 |
Rated load kg | 3 | 5 | 20 | 3 |
Maximum working radius mm | 400 | 600/750 | 800 | 500 |
Repeat positioning accuracy mm | ± 0.02 | ± 0.02 | ± 0.02 | ± 0.02 |
Body weight kg | 20 | 30 | 60 | 21 |

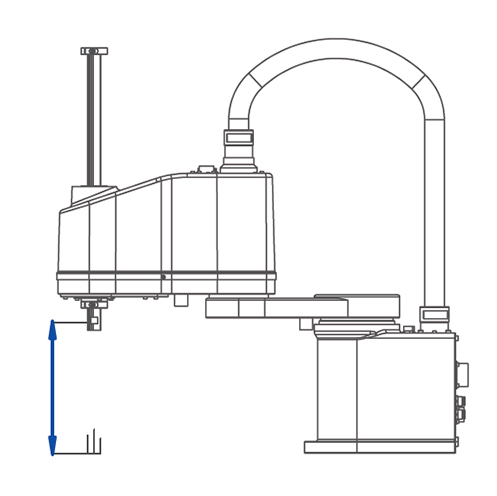

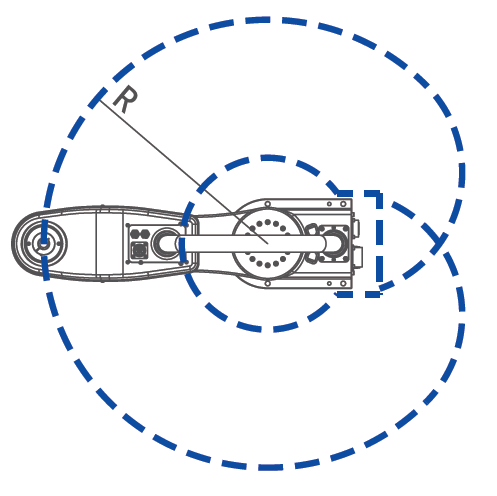

Action range:
 Action range |  Action range |
