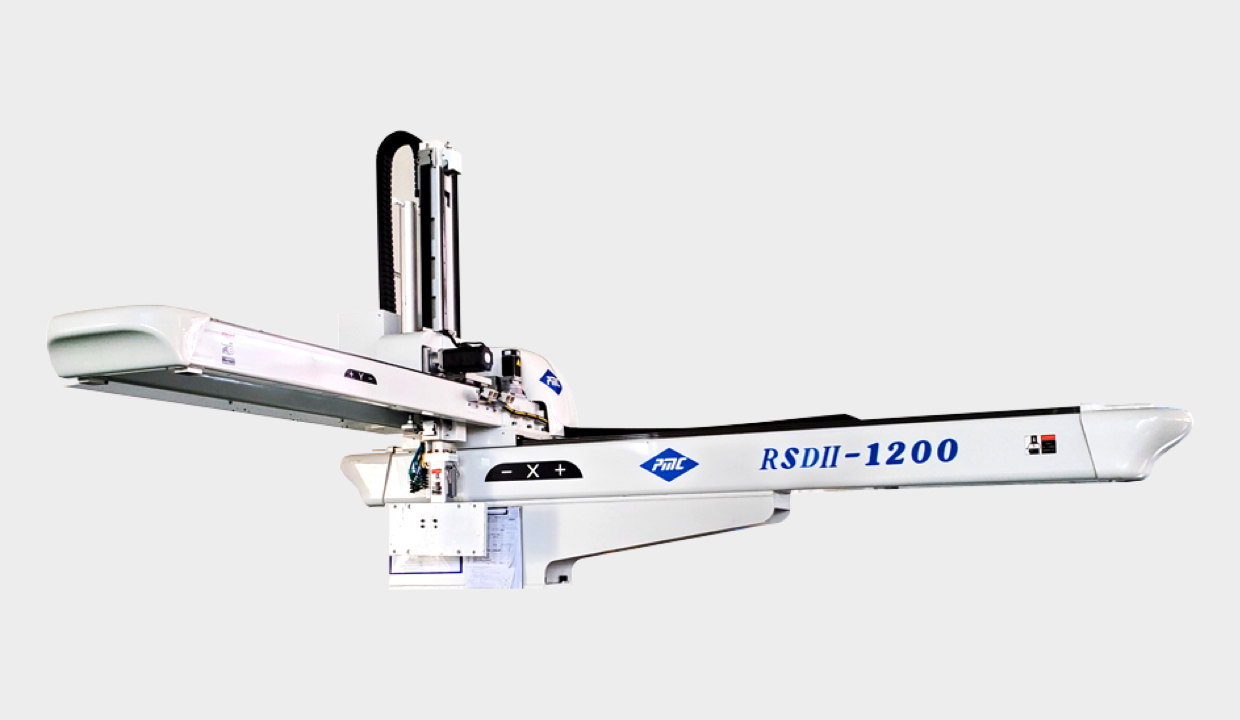

RSII series

Share to:
Availability:
Quantity:


product features:

◆ Double beam two-section structure, high rigid large-scale precision rail, the introduction of the double rail frame structure, more suitable for large equipment and precision to take a plug-in project; the arm is two-stage, effectively circumventing the high limitation of the plant cannot use intelligent equipment. The operation is smooth and smooth, the anti-bending strength is high, the machine operation is more stable, and the whole machine has a longer service life.

◆ Robot control system, big touch screen, intuitive operation, and generosity. Chinese and English free programming, fully open operating system, integrated USB interface, program storage, human machine engineering optimization.

◆ The mold in which the in-mold product can be adjusted, and the stacking function of the XYZ triaxial direction product can be realized, and the functions such as shearing, buried can be achieved when mating the tooling fixture.

◆ PMC patented appearance, lightweight, modular design, make maintenance and maintenance, fully considering equipment solid, stable, standard, and unity.


Comprehensive parameters:

model

MODEL

Tour (mm) stroke

Power supply capacity (kVA)

Power Unit Capacity

Maximum power consumption (kW)

Max Power Consumption

Machine weight

NET Weight

Air consumption

(Ni / cycle)

Air consumption

Maximum load

Lead up and down stroke

Vertical Traverse

Sub-arms up and down

SUB-ARM VERTICAL TRAVERSE

Main arm

Product crosswise

Sub-arm

SUB-ARM Crosswise

Horizontal stroke

Horizontal Traverse

RSII-800

800

----

640 [790]

----

1400 [1200] [1600] [1800]

2.7

1.5

299.0

1.8

10kg

RSII-800S

800

850

500 [650]

500 [650]

3.9

2.05

326.0

RSII-900

900

----

640 [790]

----

1400 [1200] [1600] [1800]

2.7

1.5

310.0

1.8

10kg

RSII-900S

900

950

500 [650]

500 [650]

3.9

2.05

348.0

RSII-1000

1000

----

790

----

1600
[1800] [2000]

2.7

1.5

310.0

1.8

10kg

RSII-1000S

1000

1050

650

650

3.9

2.05

348.0

RSII-1200

1200

----

1180 [1380]

----

1800 [2000] [2200]

3.8

2.0

557.0

7.10

10kg

RSII-1200S

1200

1250

1010 [1210]

1010 [1210]

5.4

2.8

598.0

23.3

RSEII-1400

1400

----

1180 [1380]

----

1800 [2200] [2000] [2500]

3.8

2.0

593.0

7.10

10kg [20kg]

RSEII-1400S

1400

1450

1010 [1210]

1010 [1210]

5.4

2.8

637.0

23.3

RSEII-1600

1600

----

1180 [1380]

----

1800 [2200] [2000] [2500]

5.3

2.8

616.8

20.73

10kg [20kg]

RSEII-1600S

1600

1650

1010 [1210]

1010 [1210]

7.6

3.9

662.6

37.79

RSEII-1800

1800

----

1380

----

2000 [2200] [2500]

5.3

2.8

665.8

20.73

15kg

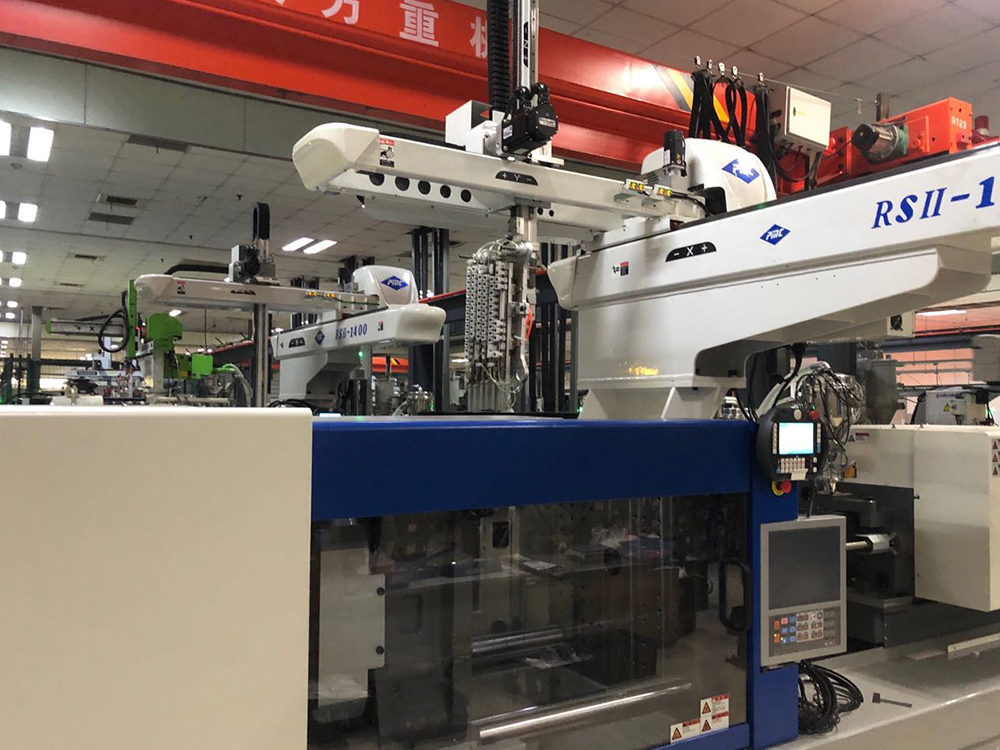

Industry application:

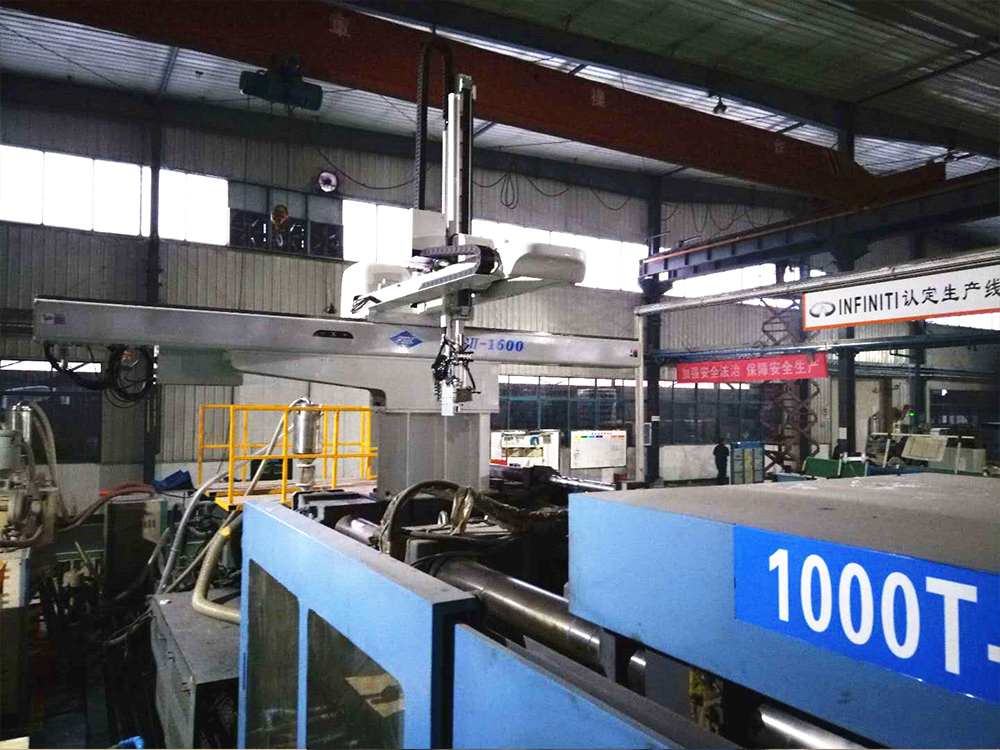

Reaches


Dongfeng-Infiniti production line

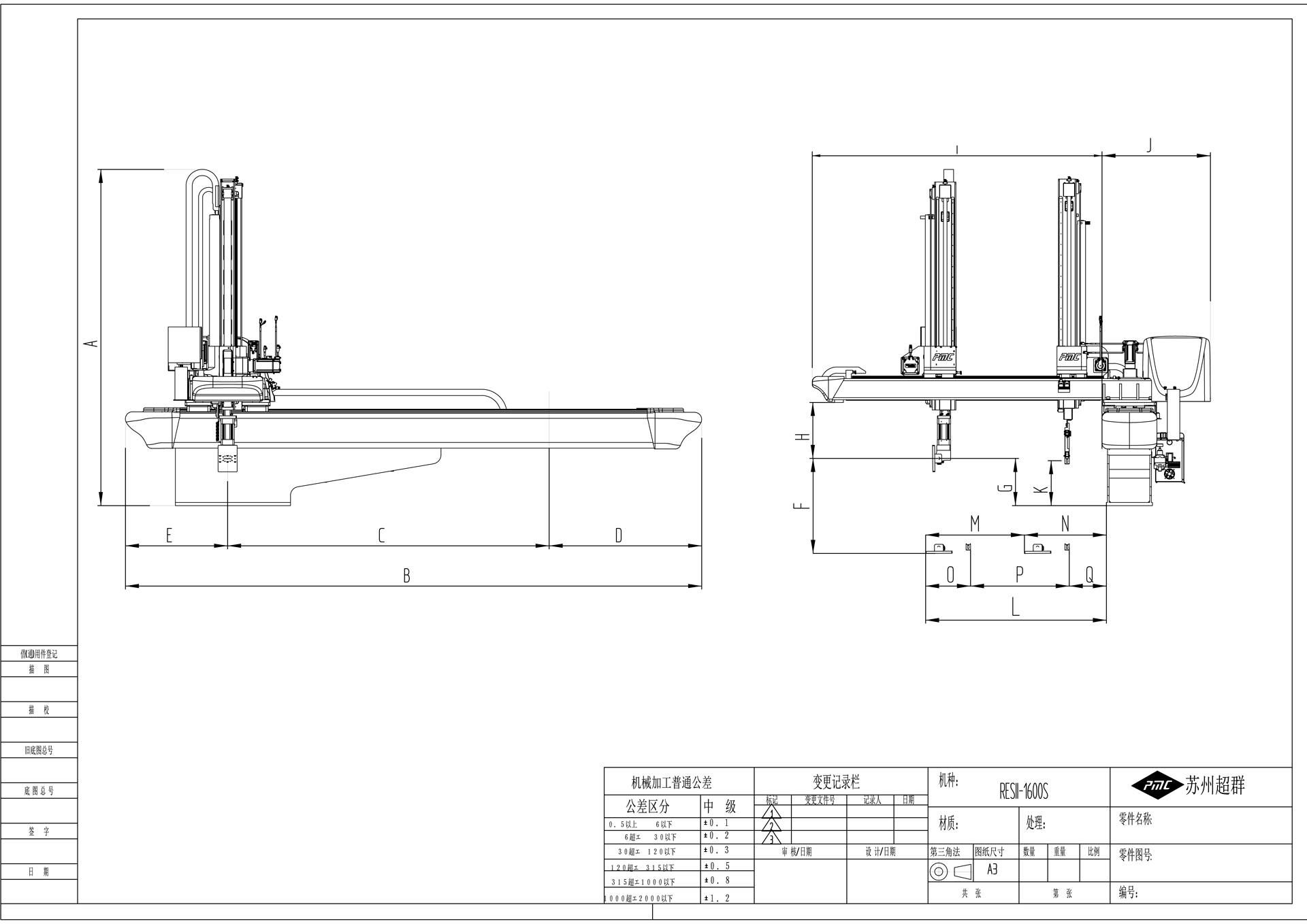

Schematic:
