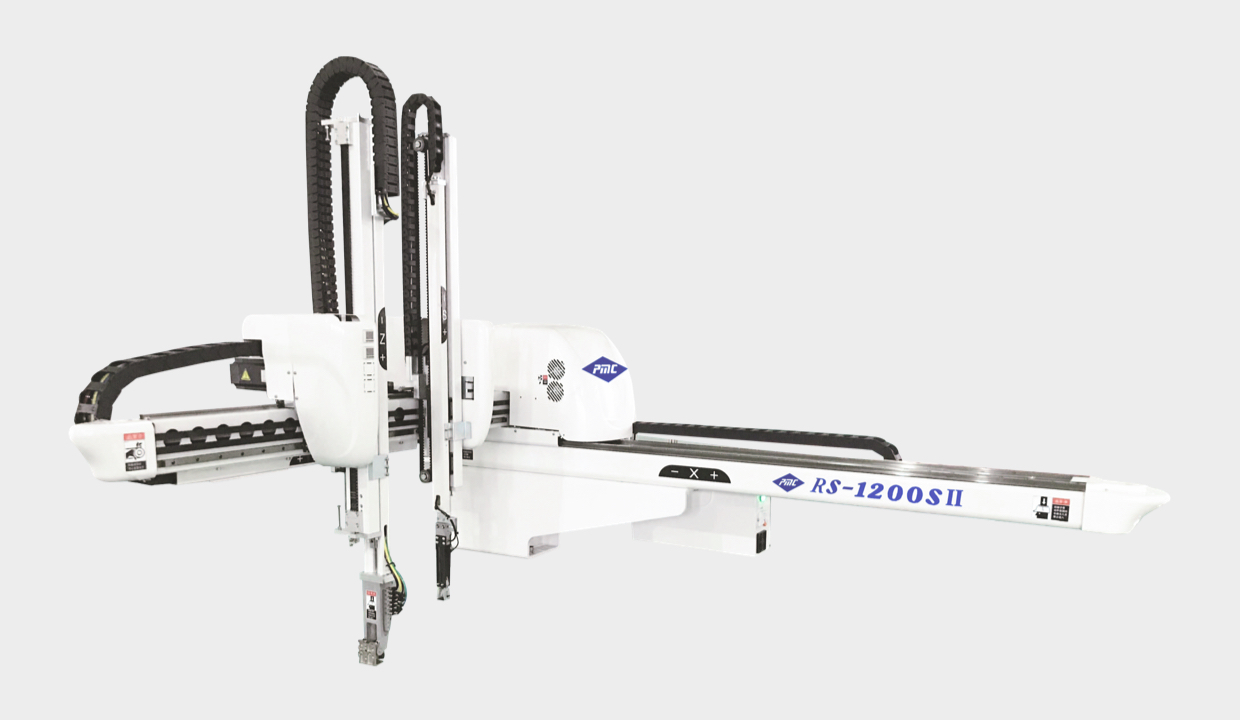

RS-II series

Share to:
Availability:
Quantity:


product features:

◆ Upstrained arm double-stage structure, high rigid large-scale precision rails, effectively avoiding the high limitation of the factory cannot use smart equipment. The operation is smooth and smooth, the anti-bending strength is high, the machine operation is more stable, and the whole machine has a longer service life.

◆ Robot control system, big touch screen, intuitive operation, and generosity. Chinese and English free programming, fully open operating system, integrated USB interface, program storage, human machine engineering optimization.

◆ The mold in which the in-mold product can be adjusted, and the stacking function of the XYZ triaxial direction product can be realized, and the functions such as shearing, buried can be achieved when mating the tooling fixture.

◆ PMC patented appearance, lightweight, modular design, make maintenance and maintenance, fully considering equipment solid, stable, standard, and unity.


Comprehensive parameters:

model

MODEL

Tour (mm) stroke

Power supply capacity (kVA)

Power Unit Capacity

Maximum power consumption (kW)

Max Power Consumption

Machine weight

NET Weight

Air consumption

(Ni / cycle)

Air consumption

Maximum load

Lead up and down stroke

Vertical Traverse

Sub-arms up and down

SUB-ARM VERTICAL TRAVERSE

Main arm

PRODUCT

Crosswise

Sub-arm

SUB-ARM Crosswise

Horizontal stroke

Horizontal Traverse

RS-800II

800


515 [670]


1400 [1200]
[1600] [1800]

2

1.1

188

1.4

5kg

RS-800Sii

800

850

515 [670]

3.2

1.7

204

RS-900II

900


515 [670]


1400
[1600] [1800

2.0

1.1

224

1.4

5kg

RS-900SII

900

950

515 [670]

3.2

1.7

243

RS-1000ii

1000


670


1600

2.0

1.1

261

1.4

5kg

RS-1000Sii

1000

1050

670

[1800] [2000]

3.2

1.7

283

RS-1200II

1200


970


1800 [1600] [2000] [2200]

2.0

1.1

414

3.1

10kg

RS-1200SII

1200

1250

970

3.2

1.7

450


Industry application:

Zhejiang Dahua Taxi


Zhejiang Dahua Taxi

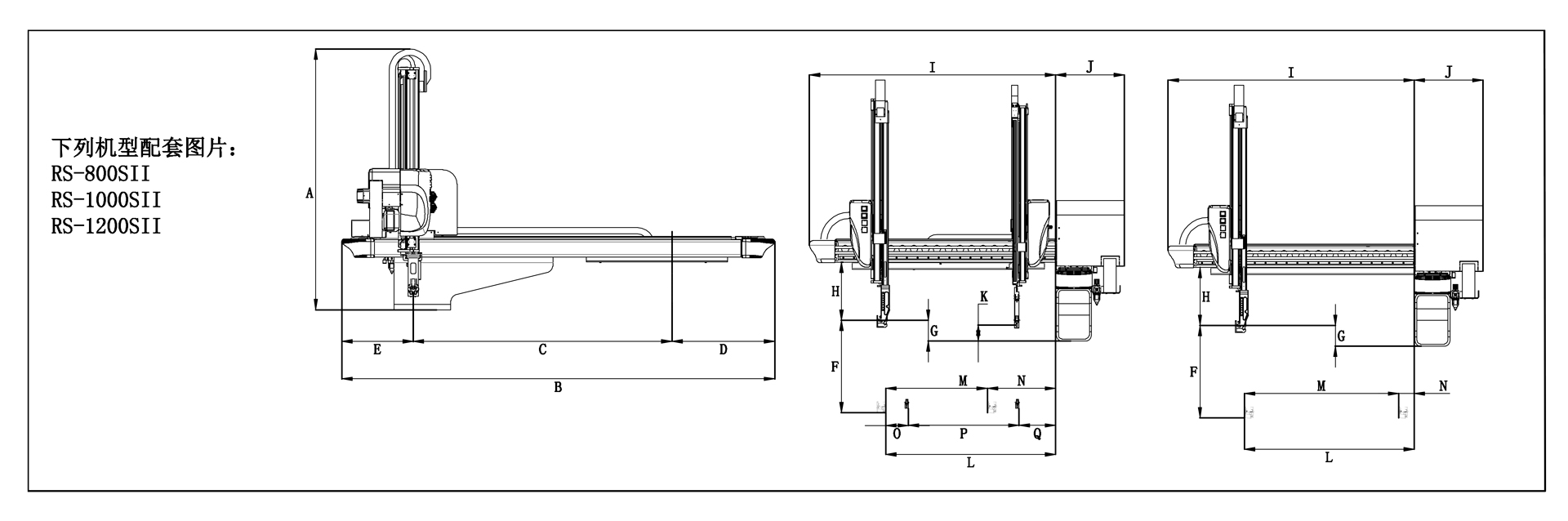

Schematic:
