product features:
Based on the structure of the standard machine steel frame structure, the stroke can be freely combined, including standard air circuit configuration, more compact structure, more compatible with equipment or linear.
Comprehensive parameters:
| model | RM-200-5 | RM-400-5 | RM-600-5 | RM-800-5 | RM-400-10 | RM-800-10 |
| Up and down | 200 | 400 | 600 | 800 | 400 | 800 |
| Front and back | 600 [400] [800] | 600 [800] | 600 [800] | 800 [1000] | 600 [1000] | 800 [1000] |
| Maximum load | 10 | 10 | 10 | 10 | 15 | 15 |
| Maximum speed | 2.5m / s | |||||
| Drive mode | Servo motor drive | |||||
| Airline configuration | A sucking one clip (module intake pipe diameter 10) | |||||
| Rated air pressure | 0.55MPa | |||||
| Module / fixture connecting board flange | Customized according to customer requirements | |||||
| Control System | PMC Control System (Optional) | |||||

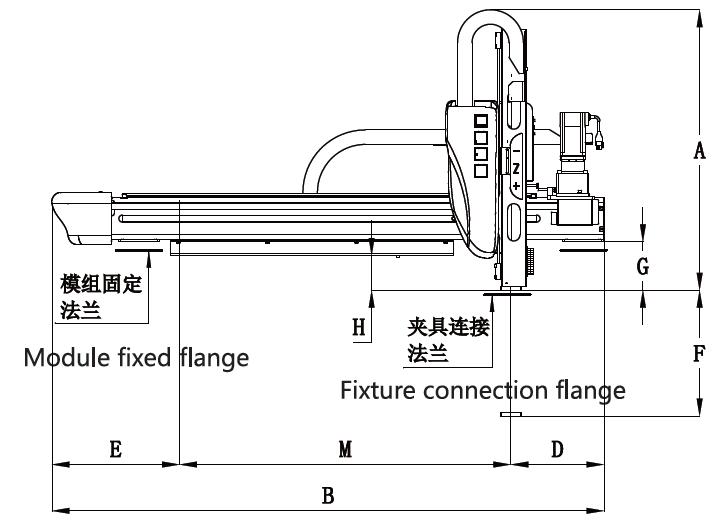

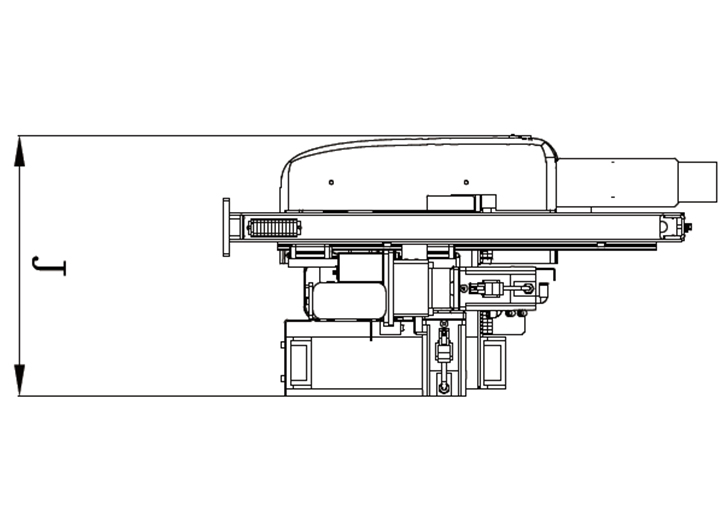

Schematic:
 Schematic |  Schematic diagram |
